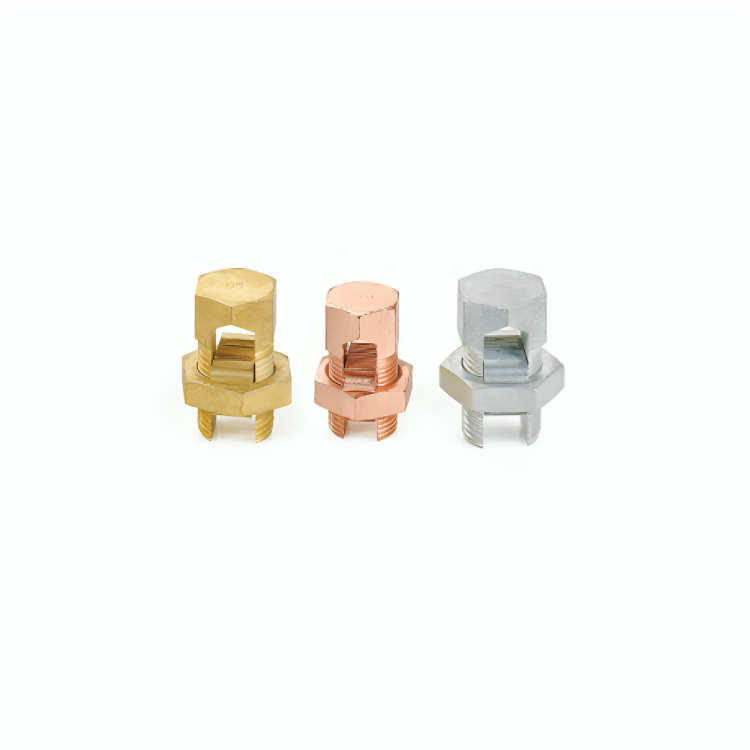

Line Taps / Split Bolts

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

Searchable Table

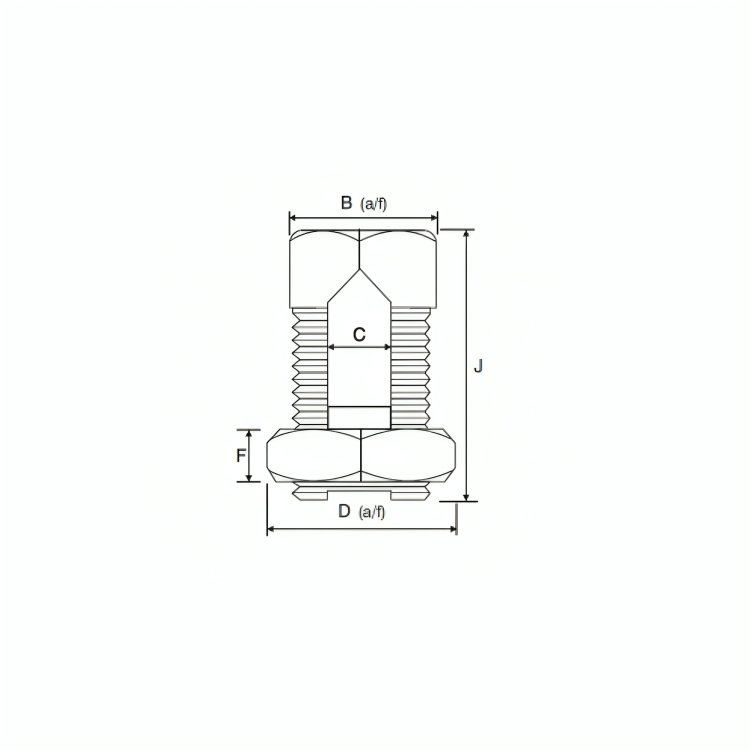

Product Code	Size	J	C	B a/f	D a/f	F
HSBC 6	6	19.85	4	12.7	13.35	4.8
HSBC 10	10	26.75	4.7	12.7	19	5.6
HSBC 16	16	26	5.7	12.7	19	5.6
HSBC 25	25	28	7.3	16	19	5.6
HSBC 35	35	35	7.8	18.5	24	6.35
HSBC 50	50	42	9.7	24.1	27.2	8.65
HSBC 70	70	44	11.5	24.1	27.2	8.65
HSBC 95	95	50	14.4	26.5	35.4	9.4
HSBC 120	120	57.5	16.2	30	35.4	12
HSBC 150	120	57.5	16.2	30	35.4	12
HSBC 185	185	57.5	18.2	31.75	38	12
HSBC 240	240	72.5	22	40	48.2	14.25
HSBC 300	300	72.5	24	42	50	14.25
HSBC 400	400	76.5	26	48	56	16
HSBC 500	500	80	30	55	65	16

Description

We offer a wide range of line taps to meet the material and dimensional specifications laid by different international standards. Brass line taps are made with high tensile brass as per BS 2874 – CZ 112. Threads are formed by rolling process giving the nut extra clamping force. Pressure pads are made from extruded bars (not cast), preventing the pads from cracking. Brass line taps are manufactured in passivated natural brass with electro tinned finish. These are also supplied in high conductivity copper.

Specifications:
