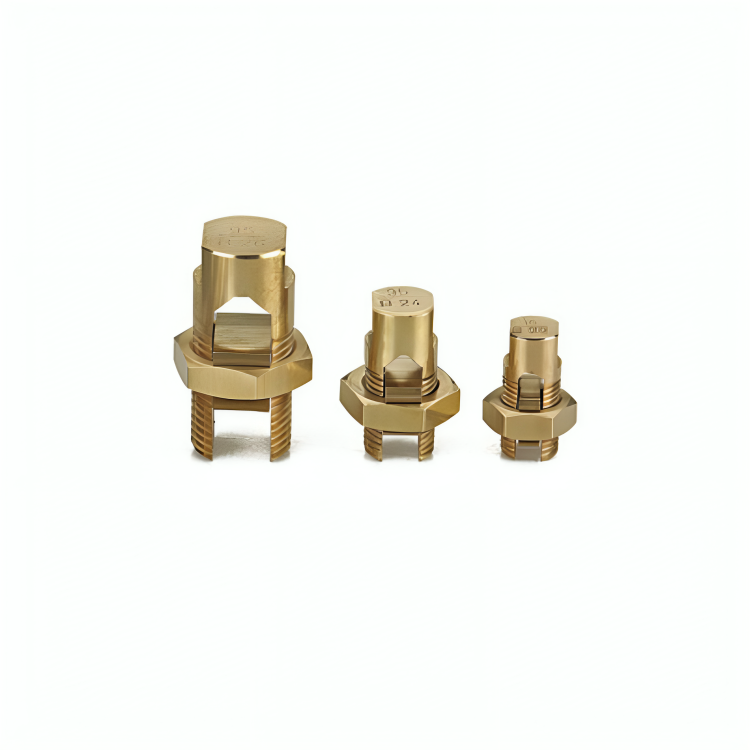

Split Bolt Connector With Round Head (Natural Brass)

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

Searchable Table

Product Code	Max Cond. Size (mm2)	Slot Width mm2	Cross Reference
HSBC12	25	6.6	-
HSBC22	16	5.3	Type A
HSBC24	35	8.3	Type B
HSBC25	70	10.9	Type C
HSBC26	95	12.9	Type D
HSBC28	185	18.5	Type E

Description

Our range of Split Bolt Connector with Round Head is used for joining aerial hard drawn copper conductors or insulated copper conductors. Split bolts are made from a high conductivity copper alloy with captive saddle, which applies a distributed pressure to conductors. The head of the split bolt is suitable for standard spanner to fit in. We also can supply these in natural copper alloy or electro tinned.

Technical Data:
