Square Concrete Earth Pit Chambers

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

PRODUCT DESCRIPTION	Product Code	OUTSIDE DIMS. IN MM			NET KGS/PC.	LOAD BEARING CAPACITY IN TONS
PRODUCT DESCRIPTION	Product Code	Length	Width	Height	NET KGS/PC.	LOAD BEARING CAPACITY IN TONS

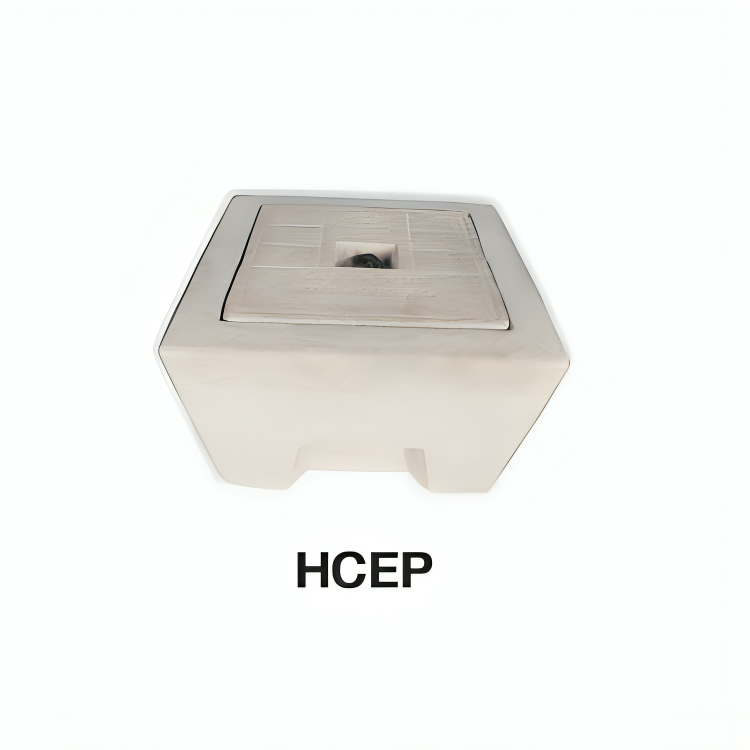

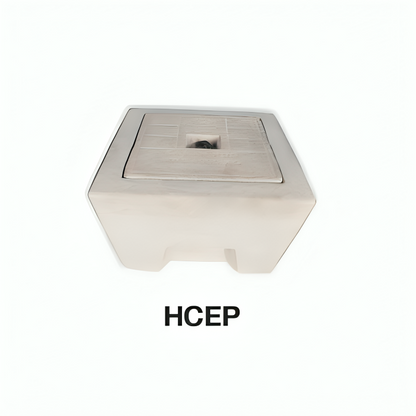

CONCRETE BASE WITH CONCRETE COVER	HCEP	310.00	310.00	170.00	25.00	5.00

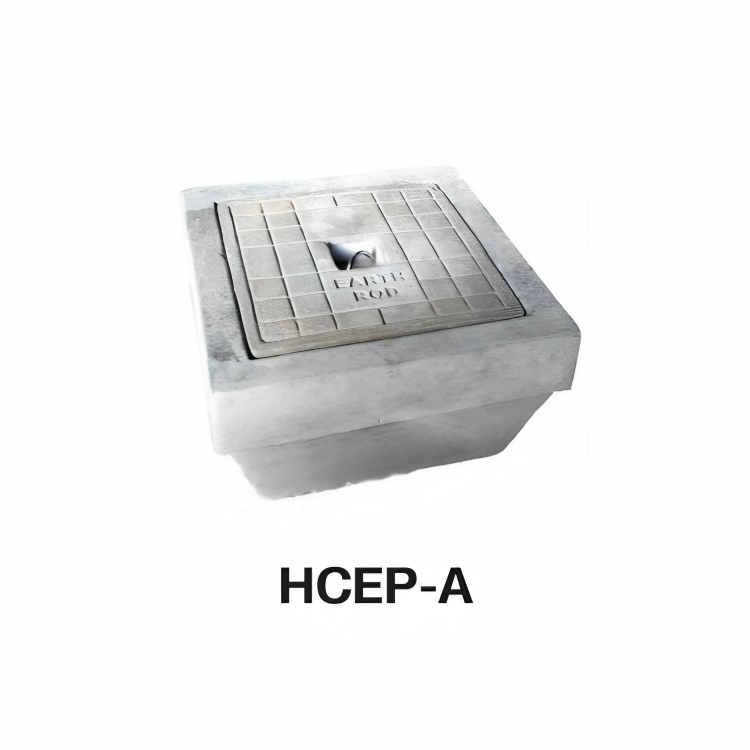

	HCEP-A	320.00	320.00	195.00	30.00	5.00

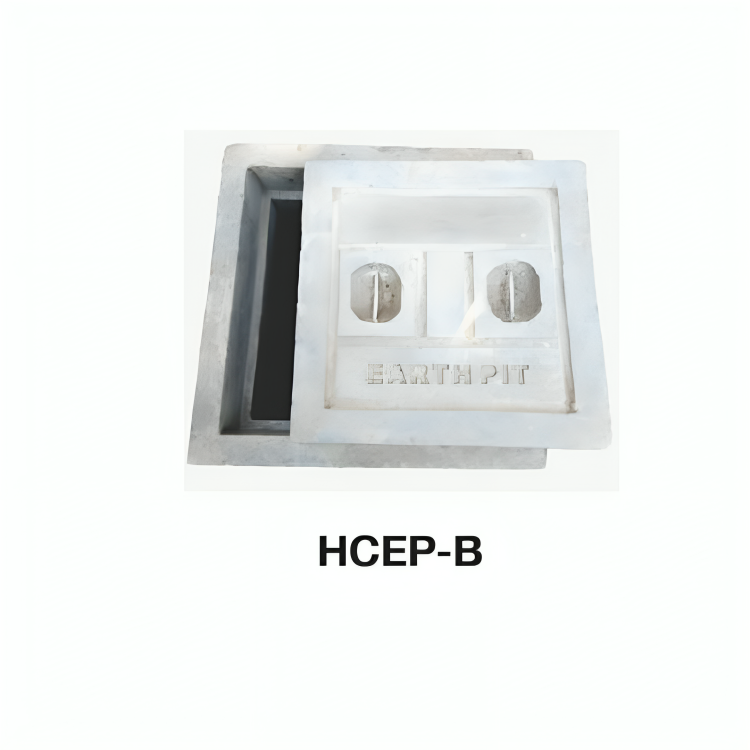

	HCEP-B	500.00	500.00	400.00	120.00	5.00

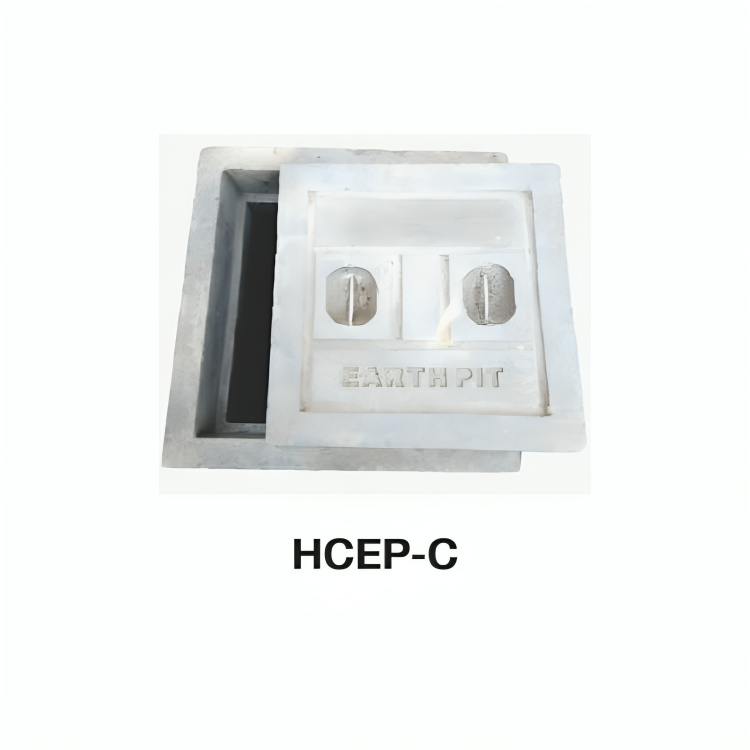

	HCEP-C	510.00	510.00	400.00	130.00	5.00

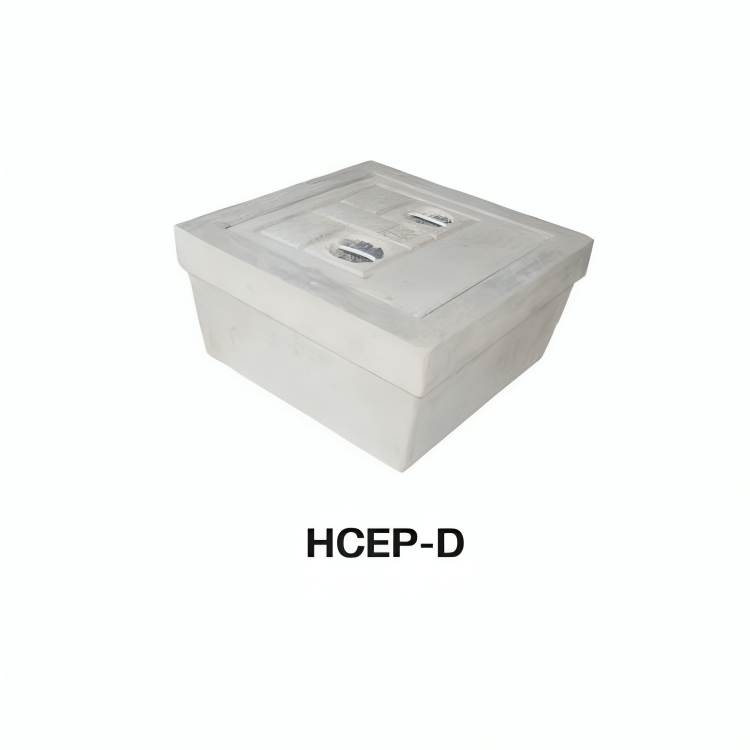

	HCEP-D	500.00	500.00	250.00	100.00	5.00

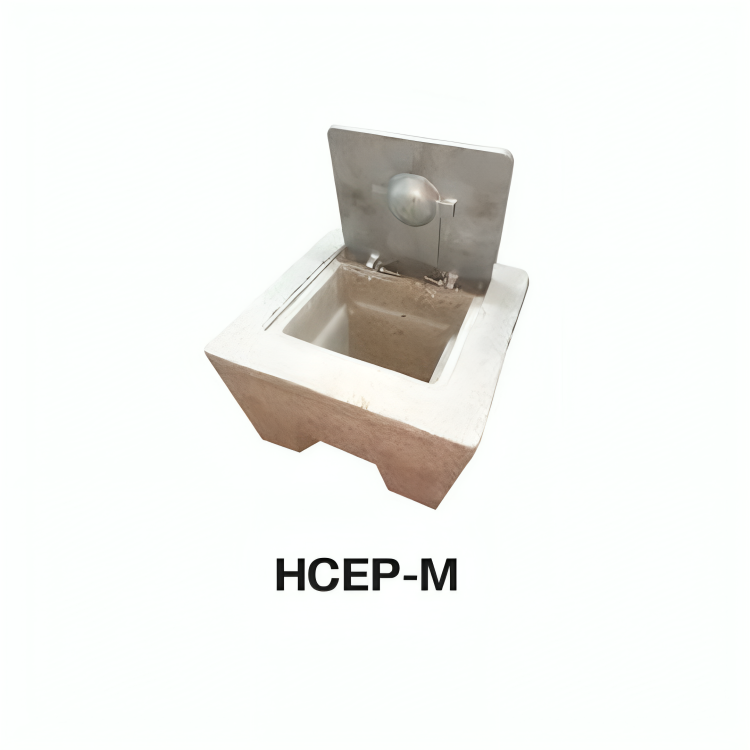

CONCRETE BASE WITH METAL COVER	HCEP-M	310.00	310.00	170.00	25.00	5.00

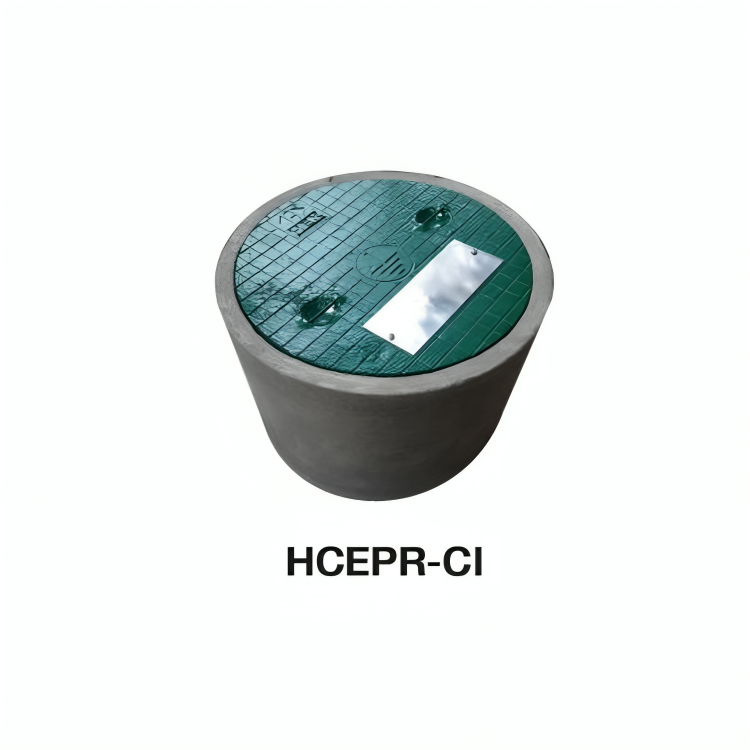

Round Concrete Earth Pit Chambers

PRODUCT DESCRIPTION	Product Code	OUTSIDE DIMS. IN MM			NET KGS/PC.	LOAD BEARING CAPACITY IN TONS
PRODUCT DESCRIPTION	Product Code	Length	Width	Height	NET KGS/PC.	LOAD BEARING CAPACITY IN TONS
POLYMER BASE WITH POLYMER COVER	HEPR	154.00	213.00	230.00	0.75	5.00
POLYMER BASE WITH POLYMER COVER	HEPR-A	260.00	355.00	260.00	2.00	5.00

Description

HEX offers a unique range of square & round Concrete Earth Pit Housing Chambers. These ready–to–use, robust chambers offer an easy replacement to the tedious brick & cement chambers that are constructed on-site. They are manufactured with a proprietary mortar formulation using prime materials along with advanced additives for inducing lightweight properties. They also offer water resistance (low porosity) & high insulation properties, long life & stability under all weather conditions.

These chambers come in many sizes suitable for every application in the industry & the Load Bearing Capacity (LBC) of our vast range is given below. An Earth Bar for multiple connections can be fitted diagonally across, in the slots provided.
They have been tested successfully for compliance as per the IEC 62561-7 standard.
