Square Polymer Earth Pit Chambers

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

PRODUCT DESCRIPTION	Product Code	OUTSIDE DIMS. IN MM			NET KGS/PC.	LOAD BEARING CAPACITY IN TONS
PRODUCT DESCRIPTION	Product Code	Length	Width	Height	NET KGS/PC.	LOAD BEARING CAPACITY IN TONS
CONCRETE BASE WITH CONCRETE COVER	HCEP	310.00	310.00	170.00	25.00	5.00
	HCEP-A	320.00	320.00	195.00	30.00	5.00
	HCEP-B	500.00	500.00	400.00	120.00	5.00
	HCEP-C	510.00	510.00	400.00	130.00	5.00
	HCEP-D	500.00	500.00	250.00	100.00	5.00
CONCRETE BASE WITH METAL COVER	HCEP-M	310.00	310.00	170.00	25.00	5.00

Round Polymer Earth Pit Chambers

PRODUCT DESCRIPTION	Product Code	OUTSIDE DIMS. IN MM			NET KGS/PC.	LOAD BEARING CAPACITY IN TONS
PRODUCT DESCRIPTION	Product Code	Length	Width	Height	NET KGS/PC.	LOAD BEARING CAPACITY IN TONS

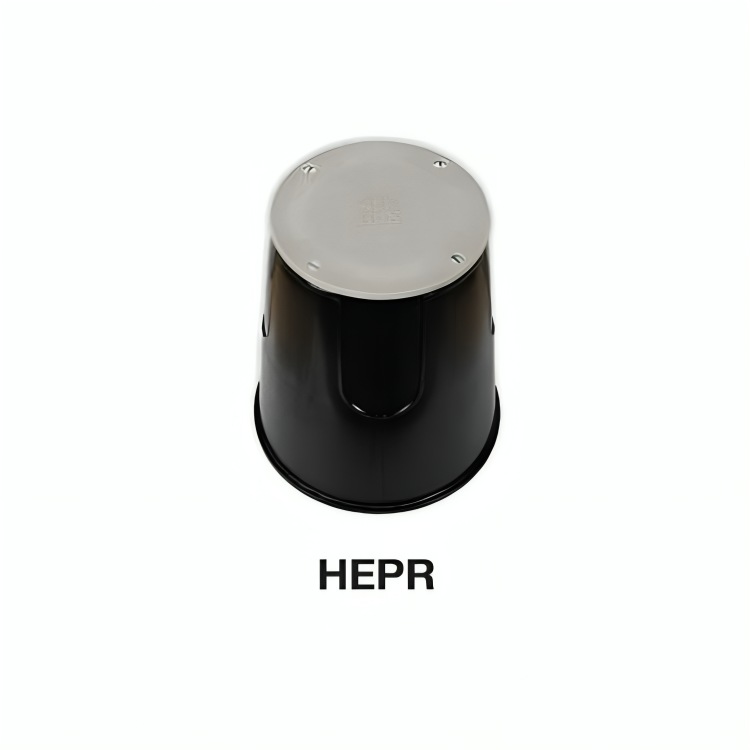

POLYMER BASE WITH POLYMER COVER	HEPR	154.00	213.00	230.00	0.75	5.00

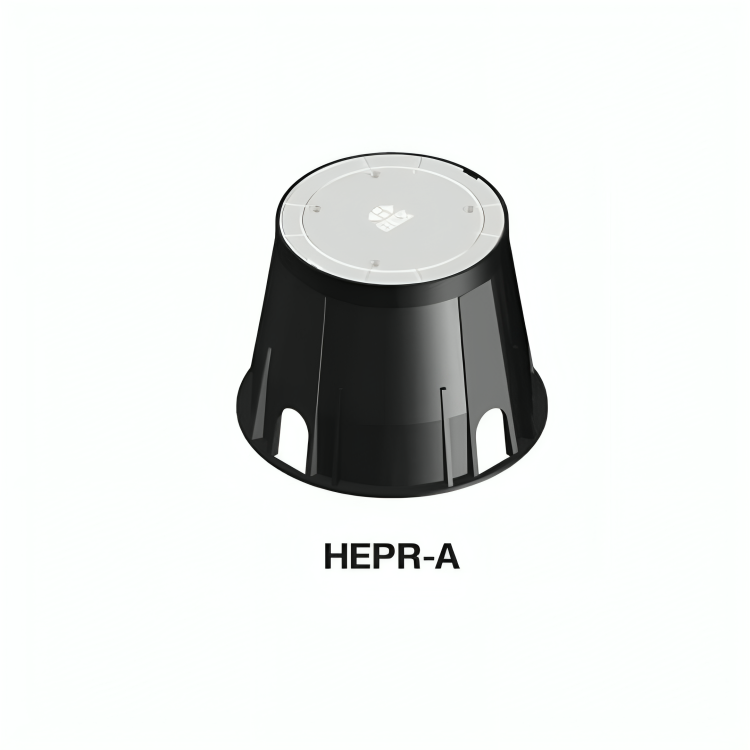

POLYMER BASE WITH POLYMER COVER	HEPR-A	260.00	355.00	260.00	2.00	5.00

Description

The HEX range of square & round Polymer Earth Pit Housing Chambers are manufactured from customized high density polymers for superior strength & absorbing high stress levels. This in turn enhances the Load Bearing capacity (LBC) as given below. They are stabilized against degradation & damage from all weather conditions and are available in a vast range of sizes & various colours.

Being comparatively light weight, this allows for ease of handling, storage & transportation. Most of the lids or covers come with some form of locking arrangement thus providing an inbuilt safety feature to the earth pit.
They have been tested successfully for compliance as per the IEC 62561-7 standard.
