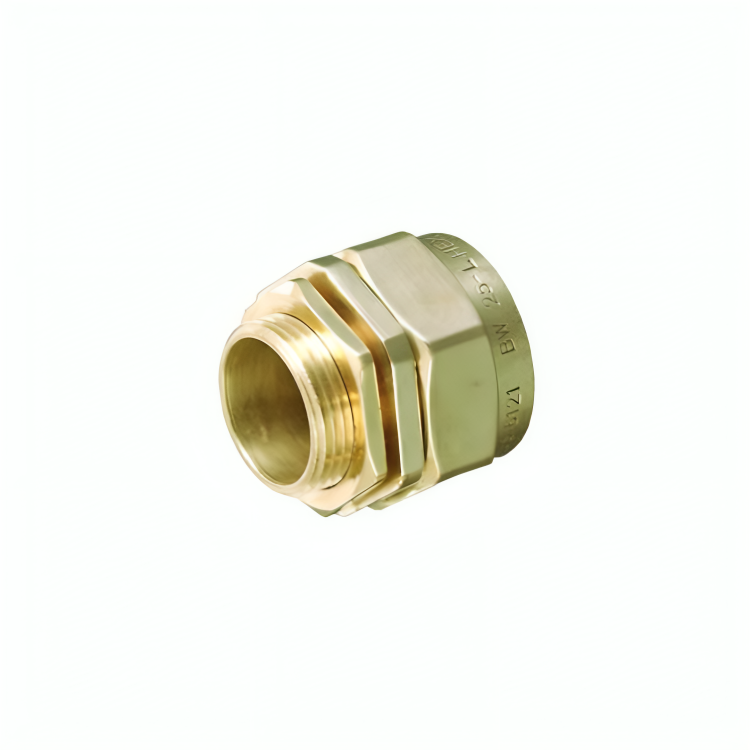

BW Cable Gland (2 Part)

BW Cable Gland (2 Part)

Price will be recieved with Quotation
Price will be recieved with Quotation
Sale Sold out

Product Codes or Sizes

Searchable Table

Size Cable Dimensions Accommodate Gland Dimensions Product Code

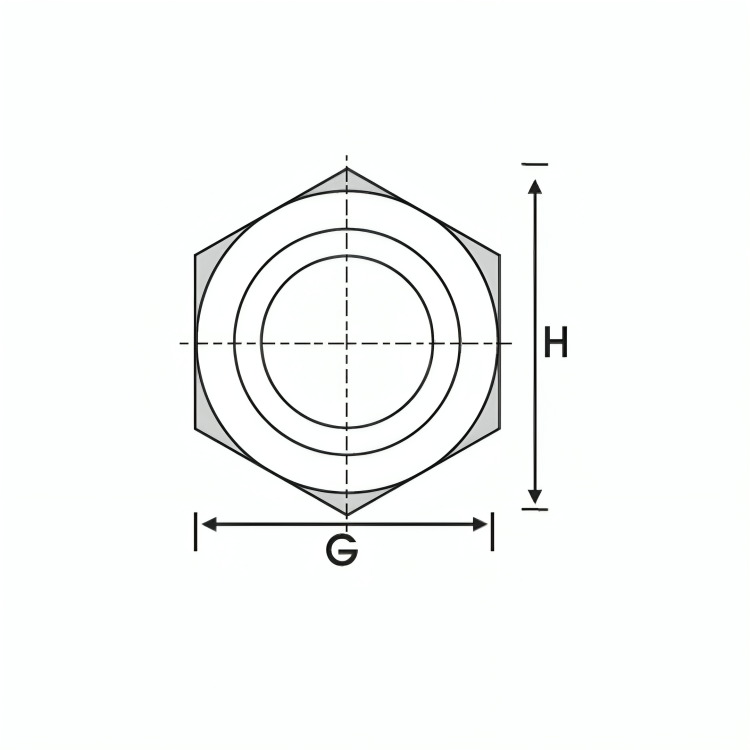

Under Armour Dia A Max. Overall Dia. B Max. Armour Wire Dia C ISO Entry Thread Approx length from shoulder Hexagon Size
mm mm mm Dia Length Across flat Across corners
D mm E mm F mm G mm H mm
16 8.6 13.5 0.9 16 10 23 20 23 HBW 16
20 S 12.3 17 0.90/1.25 20 10 23 23 24 HBW 20 S
20 14.3 20 0.90/1.25 20 10 30 25 27 HBW 20
25 S 18 23.8 1.25/1.60 25 10 30 31 32.5 HBW 25 S
25 20.4 27 1.25/1.60 25 10 32 30 38.5 HBW 25
32 26.5 33 1.60/2.00 32 10 36 41.5 45.5 HBW 32
40 S 31 37 1.60/2.00 40 10 36 45 50 HBW 40S
40 32.5 43 1.60/2.00 40 15 40 49 54 HBW 40
50S 37.8 48 2.00/2.50 50 15 40 58 65 HBW 50S
50 44 53 2.00/2.50 50 15 45 62.3 69.5 HBW 50
63S 50.5 60.5 2.5 63 15 45 70 77 HBW 63S
63 56.5 65.5 2.5 63 15 50 76.3 85 HBW 63
75S 62.5 72 2.5 75 15 50 85 95 HBW 75 S
75 67.5 78.5 2.50/3.15 75 15 75 90.5 99 HBW 75
90 80 93 3.15 90 20 75 112 125 HBW 90
