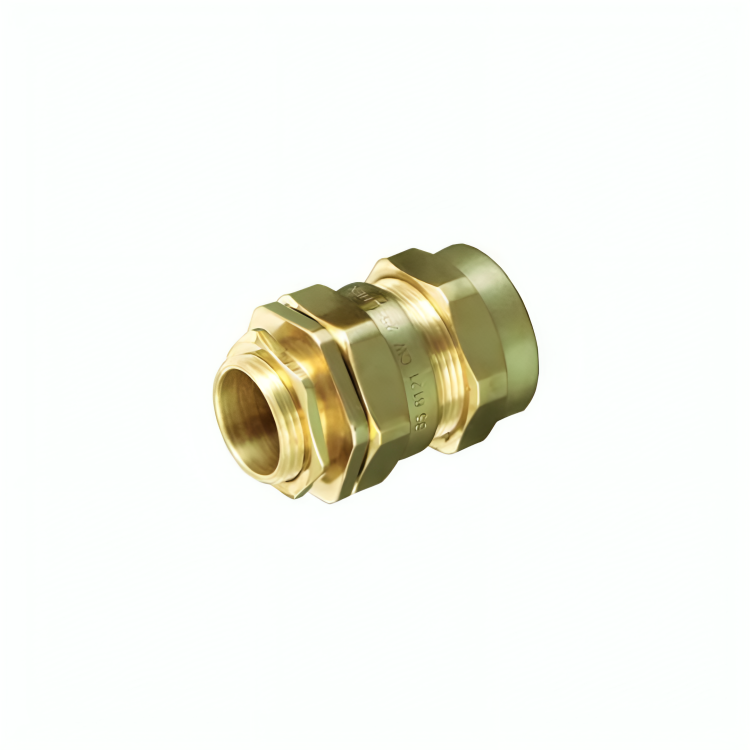

CW Cable Gland (3 Part)

CW Cable Gland (3 Part)

Price will be recieved with Quotation
Price will be recieved with Quotation
Sale Sold out

Product Codes or Sizes

Searchable Table

Size Cable Dimensions Accommodate Gland Dimensions Product Code
Under Armour Dia A Max. Overall Dia. B Max. Armour Wire Dia C ISO Entry Thread Approx length from shoulder Hexagon Size
mm mm mm Dia Length Across flat Across corners
D mm E mm F mm G mm H mm
16 8.6 13.5 0.9 16 10 40 20 23 HCW 16
20 S 12.5 17 0.90/1.25 20 10 47 22 29 HCW 20 S
20 14.4 20.5 0.90/1.25 20 10 47 26 29 HCW 20
25 S 17.8 23.8 1.25/1.60 25 10 50 31 34 HCW 25 S
25 20.4 27 1.25/1.60 25 10 50 34 38.5 HCW 25
32 26.5 33 1.60/2.00 32 10 55 41.5 46.5 HCW 32
40 S 31 37 1.60/2.00 40 10 60 45 50 HCW 40S
40 32.5 40.8 1.60/2.00 40 15 60 49 54 HCW 40
50S 37.8 45 2.00/2.50 50 15 65 51 64 HCW 50S
50 44 51.5 2.00/2.50 50 15 65 62.3 69.5 HCW 50
63S 50.5 60.5 2.5 63 15 70 70 78 HCW 63S
63 56.5 65.5 2.5 63 15 70 76.3 85 HCW 63
75S 62.5 72 2.5 75 15 75 85 95 HCW- 75 S
75 67.5 78.5 2.50/3.15 75 15 75 91 112 HCW 75
90 80 90 3.15 90 20 90 103 115 HCW 90
