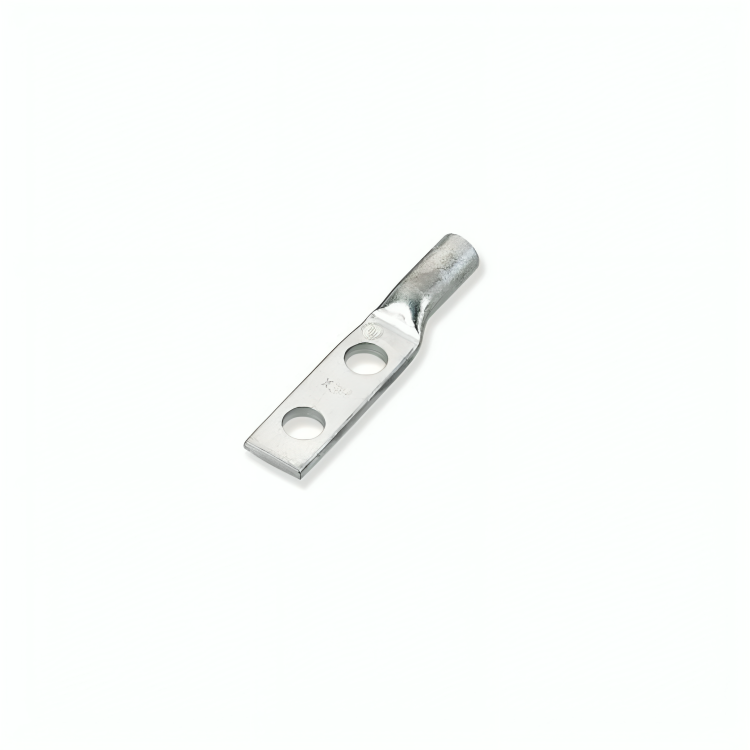

Copper Compression Lugs - Short Barrel, 2 Holes

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

Searchable Table

Wire Size	Bolt Size	Dimensions in inch					Color Code	Product Code

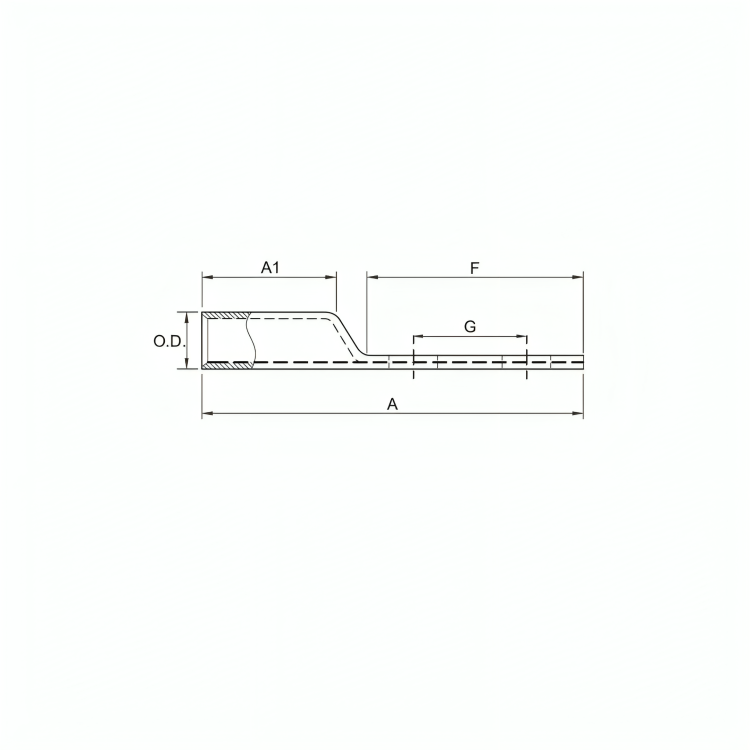

Wire Size	Bolt Size	O.D.	A1	A	F	G	Color Code	Product Code
8	#10	0.281	0.440	1.820	1.260	0.630	Red	HS-A-8 L2
6	1/4"	0.297	0.710	2.090	1.260	0.630	Blue	HS-A-6 L2
4	1/4"	0.344	0.710	2.090	1.260	0.630	Gray	HS-A-4 L2
2	5/16"	0.422	0.830	2.620	1.610	0.750	Brown	HS-A-2 L2
1	1/4"	0.469	0.830	2.280	1.260	0.630	Green	HS-A-1 L2
1/0	5/16"	0.517	0.830	2.874	1.810	0.984	Pink	HS-A-1/0 L2
1/0	3/8"	0.517	0.830	2.830	1.810	1.000	Pink	HS-A-1/0-38 L2
2/0	3/8"	0.563	0.940	2.990	1.850	1.000	Black	HS-A-2/0 L2
2/0	1/2"	0.563	0.940	4.170	2.990	1.750	Black	HS-A-2/0-12 L2
3/0	1/2"	0.609	0.984	4.290	2.990	1.750	Orange	HS-A-3/0 L2
4/0	1/2"	0.688	1.142	4.290	3.031	1.750	Purple	HS-A-4/0 L2
4/0	3/8"	0.688	1.142	4.449	3.031	1.752	Purple	HS-A-4/0-38 L2
250 MCM	1/2"	0.750	1.060	4.410	2.990	1.750	Yellow	HS-A-250 L2
300 MCM	1/2"	0.813	1.060	4.410	2.990	1.750	White	HS-A-300 L2
350 MCM	1/2"	0.875	1.100	4.530	2.990	1.750	Red	HS-A-350 L2
400 MCM	1/2"	0.937	1.180	4.690	2.990	1.750	Blue	HS-A-400 L2
500 MCM	1/2"	1.063	1.380	4.880	2.990	1.750	Brown	HS-A-500 L2
600 MCM	3/8"	1.188	1.500	4.960	2.990	1.750	Green	HS-A-600 L2
600 MCM	1/2"	1.188	1.500	5.040	2.990	1.750	Green	HS-A-600-12 L2
*750 MCM	1/2"		1.850	5.510		1.750	Black	HS-A-750 L2
