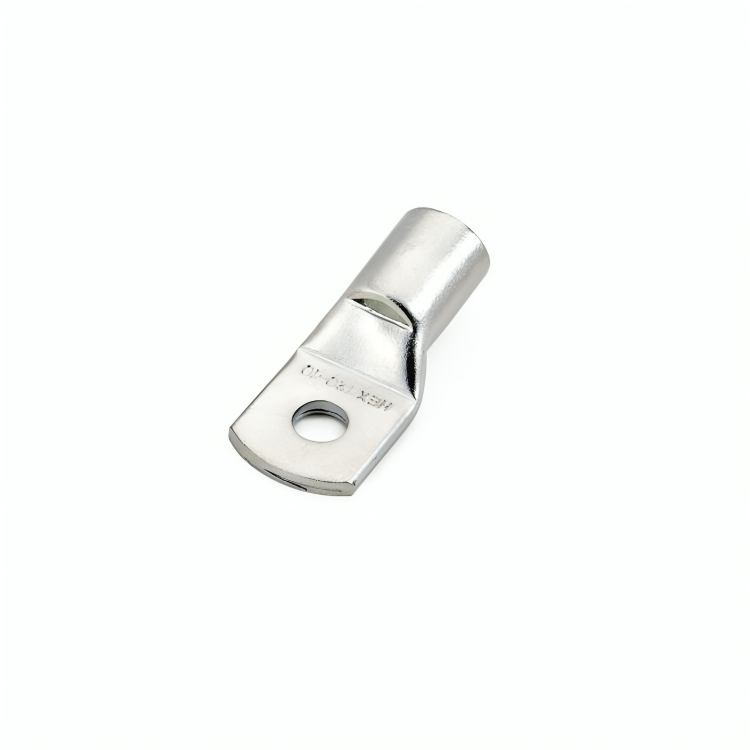

Crimping Type Copper Tubular Cable Terminal Ends

Crimping Type Copper Tubular Cable Terminal Ends

Price will be recieved with Quotation
Price will be recieved with Quotation
Sale Sold out

Product Codes or Sizes

Searchable Table

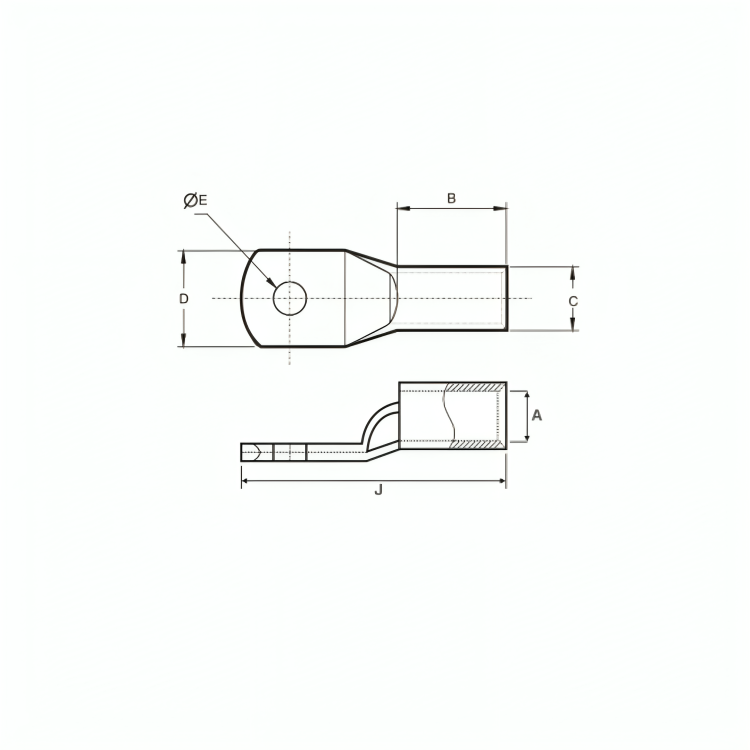

Cable mm² Stud Hole E Dimensions Product Code
A C D G H B J
1.5 4.2 1.8 3.7 8 4 5 6 17 HT 1.5 - 4
1.5 5.2 1.8 3.7 8 4 5 6 17 HT 1.5 - 5
1.5 6.5 1.8 3.7 10 4 6 6 18 HT 1.5 - 6
2.5 4.2 2.4 4 8 4 5 8 19 HT2.5 - 4
2.5 5.2 2.4 4 8 4 5 8 19 HT2.5 - 5
2.5 6.5 2.4 4 10 5 6 8 21 HT2.5 - 6
2.5 8.4 2.4 4.2 12 6 9 8 26 HT2.5 - 8
4 4.2 3.1 4.8 10 5 6 8 21 HT4 - 4
4 5.2 3.1 4.8 10 5 6 8 21 HT4 - 5
4 6.5 3.1 4.8 10 5 6 8 21 HT4 - 6
4 8.4 3.1 4.8 12 6 9 8 26 HT4 - 8
6 5.2 3.8 5.5 10 5 6 10 24 HT6 - 5
6 6.5 3.8 5.5 10 5 6 10 24 HT6 - 6
6 8.4 3.8 5.5 12 6 9 10 28 HT6 - 8
6 10.5 3.8 6 15 8 1 10 32 HT6 - 10
10 6.5 4.5 6.2 11 6 7 10 26 HT 10 - 6
10 8.4 4.5 6.2 12 6 9 10 28 HT 10 - 8
10 10.5 4.5 6.8 15 8 11 11 33 HT 10 - 10
16 6.5 5.4 7.1 12 7 7 12 30 HT 16 - 6
16 8.4 5.4 7.1 12 7 7 12 30 HT 16 - 8
16 10.5 5.4 7.6 15 8 2 12 36 HT 16 - 10
16 13 5.4 7.6 17 11 3 12 39 HT 16 - 12
20 8.4 6 7.7 12 7 7 12 32 HT 20 - 8
25 6.5 6.8 8.8 13 7 7 12 30 HT 25 - 6
25 8.4 6.8 8.8 13 7 7 12 30 HT 25 - 8
25 10.5 6.8 8.8 15 10 11 13 38 HT 25 - 10
25 13 6.8 9.2 17 10 12 15 41 HT 25 - 12
35 6.5 8.2 10.6 16 9 9 13.5 37 HT 35 - 6
35 8.4 8.2 10.6 16 9 9 13.5 37 HT 35 - 8
35 10.5 8.2 10.6 16 9 9 13.5 37 HT 35 - 10
35 13 8.2 10.6 18 10 12 13.5 41 HT 35 - 12
35 17 8.2 10.6 22 14 18 13.5 50 HT 35 - 16
50 8.4 9.5 12.4 18 9 10 17 42 HT 50 - 8
50 10.5 9.5 12.4 18 9 10 17 42 HT 50 - 10
50 13 9.5 12.4 20 10 12 17 45 HT 50 - 12
50 17 9.5 12.4 22 15 15 18 54 HT 50 - 16
70 8.4 11.3 14.6 21 11 11 18.5 47 HT 70 - 8
70 10.5 11.3 14.6 21 11 11 18.5 47 HT 70 - 10
70 13 11.3 14.6 21 11 11 18.5 47 HT 70 - 12
70 14.5 11.3 14.6 22 14 15 18.5 55 HT 70 - 14
70 17 11.3 14.6 26 14 16 18.5 56 HT 70 - 16
95 10.5 13.5 17.4 25 12 13 21 53 HT 95 - 10
95 13 13.5 17.4 25 12 13 21 53 HT 95 - 12
95 14.5 13.5 17.4 25 14 15 22 55 HT 95 - 14
95 17 13.5 17.4 25 14 16 22 56 HT 95 - 16
120 13 15 19.4 28 13 14 23 60 HT120 - 12
120 14.5 15 19.4 28 13 14 23 60 HT120 - 14
120 17 15 19.4 28 16 16 23 64 HT 120 - 16
150 13 16.5 21.2 30 16 16 27 70 HT 150 - 12
150 14.5 16.5 21.2 30 16 16 27 70 HT 150 - 14
150 17 16.5 21.2 30 16 16 27 70 HT 150 - 16
150 21 16.5 21.2 30 19 16 27 73 HT150 - 20
185 13 18.5 23.5 34 17 19 32 80 HT 185 - 12
185 14.5 18.5 23.5 34 17 19 32 80 HT 185 - 14
185 17 18.5 23.5 34 17 19 32 80 HT 185 - 16
185 21 18.5 23.5 34 17 19 32 80 HT185 - 20
240 13 21 26.5 38 20 20 37 94 HT 240 - 12
240 17 21 26.5 38 20 20 37 94 HT 240 - 14
240 17 21 26.5 38 20 20 37 94 HT 240 - 16
240 21 21 26.5 38 20 20 37 94 HT 240 - 20
240 - 21 26.5 38 - - 37 94 HT 240 - BL
300 13 23.5 30 43 22 22 42 102 HT 300 - 12
300 14.5 23.5 30 43 22 22 42 102 HT 300 - 14
300 17 23.5 30 43 22 22 42 102 HT 300 - 16
300 21 23.5 30 43 22 22 42 102 HT 300 - 20
300 - 23.5 30 43 - - 42 102 HT 300 - BL
400 13 28.5 36.5 52.5 26 26 44 114 HT 400 - 12
400 14.5 28.5 36.5 52.5 26 26 44 114 HT 400 - 14
400 17 28.5 36.5 52.5 26 26 44 114 HT 400 - 16
400 21 28.5 36.5 52.5 26 26 44 114 HT 400 - 20
400 - 28.5 36.5 52.5 - - 44 114 HT 400 - BL
500 17 30 39 56 28 28 48 121 HT 500 - 16
500 21 30 39 56 28 28 48 121 HT 500 - 20
500 - 30 39 56 - - 48 121 HT 500 - BL
630 14.7 35 45 63.8 33 33 60 144 HT 630 - 16
630 17 35 45 63.8 33 33 60 144 HT 630 - 20
630 21 35 45 63.8 - - 60 144 HT 630 - BL
800 - 39 50.6 72 - - 78 170 HT 800 - BL
1000 - 43 56.2 78.5 - - 90 200 HT 1000 - BL
