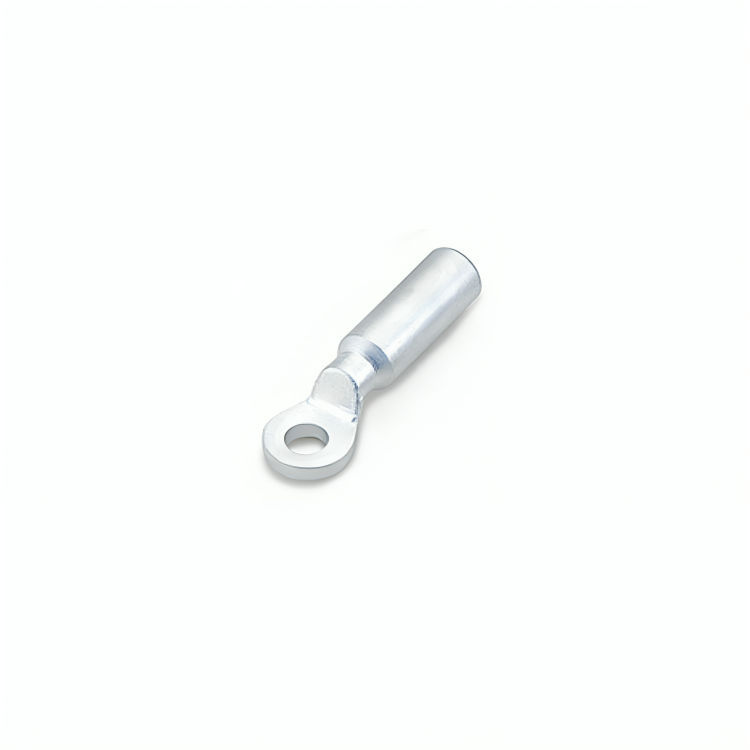

Aluminium Forged Cable Lugs (As Per DIN 46329)

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

Cable mm²	Stud Hole E	Dimensions						Product Code
Cable mm²	Stud Hole E	Bolt	A	C	D	B	L-1	Product Code
16	8.4	M 8	5.8	12	20	30	50	HAFL 16-8
25	8.4	M 8	6.8	12	20	30	50	HAFL 25-8
35	8.4	M 8	8	14	25	42	62	HAFL 35-8
50	8.4	M 8	9.8	16	25	42	62	HAFL 50-8
70	8.4	M 8	11.2	18	25	52	72	HAFL 70-8
95	10.5	M 10	13.2	22	25	56	75	HAFL 95-10
120	10.5	M 10	14.7	22	30	56	80	HAFL 120-10
150	10.5	M 10	16.3	25	30	60	90	HAFL 150-10
185	10.5	M 10	18.3	28	30	60	91	HAFL 185-10
240	10.5	M 10	21	32	38	70	103	HAFL 240-10
300	13	M12	23.3	34	38	70	103	HAFL 300-12
400	13	M12	26	38	38	73	116	HAFL 400-12
500	13	M12	29	44	44	79	122	HAFL 500-2
