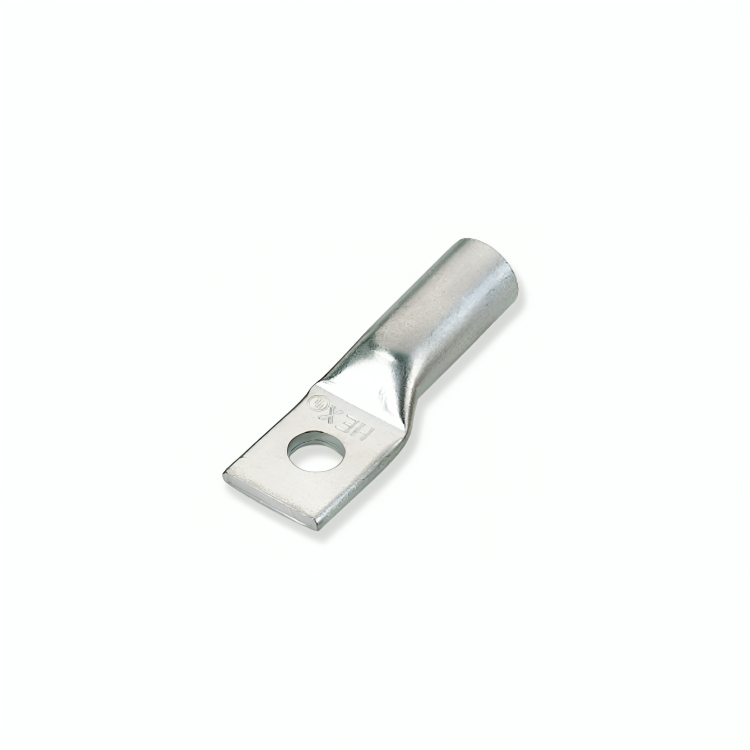

Copper Compression Lugs - Short Barrel

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

Searchable Table

Wire Size	Bolt Size	Tang Width	Dimensions					O.D Inch	I.D Inch	Product Code

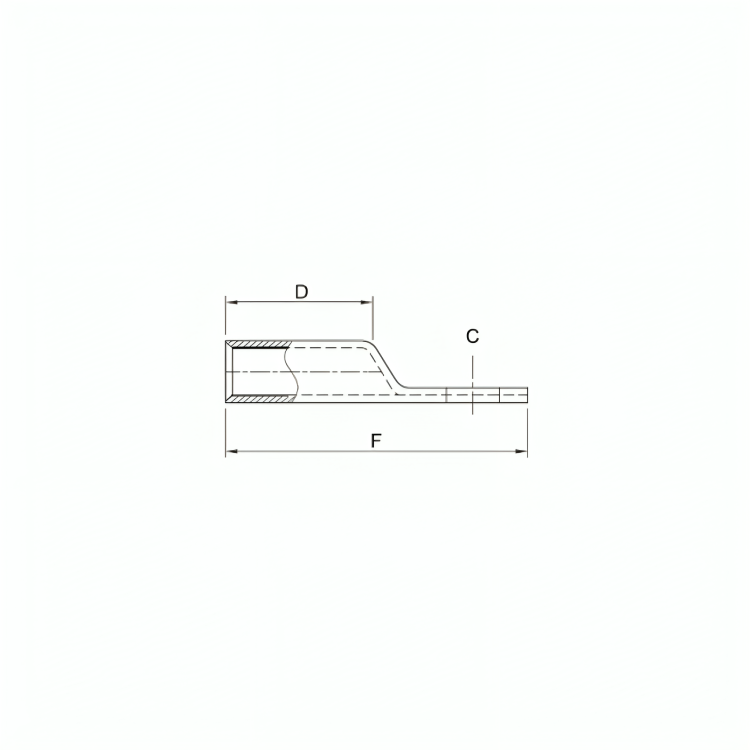

Wire Size	Bolt Size	Tang Width	C	D	E	F	T	O.D Inch	I.D Inch	Product Code
8	10	0.41	0.2	0.44	0.5	1.13	0.09	0.28	0.17	HCRA 8
6	10	0.41	0.2	0.81	0.5	1.5	0.09	0.3	0.2	HCRA 6
6	1/4	0.41	0.28	0.81	0.5	1.5	0.09	0.3	0.2	HCRA 6
4	10	0.5	0.2	0.81	0.5	1.5	0.09	0.34	0.25	HCRA 4
4	5/16	0.5	0.33	0.81	0.5	1.5	0.09	0.34	0.25	HCRA 4-516
4	1/4	0.5	0.28	0.81	0.5	1.5	0.09	0.34	0.25	HCRA 4
3	1/4	0.53	0.28	0.81	0.5	1.5	0.09	0.38	0.28	HCRA 3
2	1/4	0.59	0.28	0.88	0.75	1.81	0.11	0.42	0.31	HCRA 2
2	5/16	0.59	0.34	0.88	0.75	1.84	0.11	0.42	0.31	HCRA 2
2	3/8	0.59	0.41	1.09	0.75	2.03	0.11	0.42	0.31	HCRA 2
1	5/16	0.69	0.34	0.88	0.75	1.88	0.11	0.47	0.36	HCRA 1
1	1/4	0.69	0.28	0.88	0.75	1.88	0.11	0.47	0.36	HCRA 1-14
1	3/8	0.69	0.41	0.88	0.75	1.88	0.11	0.47	0.36	HCRA 1-38
1/0	5/16	0.75	0.34	0.88	0.75	1.88	0.13	0.52	0.39	HCRA 0
1/0	1/4	0.75	0.28	0.88	0.75	1.88	0.13	0.52	0.39	HCRA 0-14
1/0	3/8	0.75	0.41	0.88	0.75	1.88	0.13	0.52	0.39	HCRA 0
2/0	3/8	0.81	0.41	0.94	0.88	2.09	0.13	0.56	0.44	HCRA 2/0
2/0	1/4	0.81	0.28	0.94	0.88	2.09	0.13	0.56	0.44	HCRA 2/0-14
2/0	5/16	0.81	0.34	1.22	0.88	2.09	0.13	0.56	0.44	HCRA 2/0
3/0	3/8	0.91	0.41	1	1	2.31	0.13	0.61	0.48	HCRA 3/0
3/0	1/4	0.91	0.28	1	1	2.31	0.13	0.61	0.48	HCRA 3/0-14
3/0	1/2	0.91	0.53	1	1	2.31	0.13	0.61	0.48	HCRA 3/0
3/0	5/16	0.91	0.34	1.31	0.69	2.31	0.13	0.61	0.48	HCRA 3/0
4/0	3/8	1	13.32	1	1	2.34	0.14	0.69	0.55	HCRA 4/0
4/0	1/4	1	9.32	1	1	2.34	0.14	0.69	0.55	HCRA 4/0-14
4/0	1/2	1	0.53	1	1	2.34	0.14	0.69	0.55	HCRA 4/0
4/0	5/16	0.91	0.34	1.34	0.69	2.31	0.13	0.69	0.55	HCRA 4/0
250MCM	1/2	1.09	0.53	1.06	1.13	2.63	0.16	0.75	0.56	HCRA 250
250MCM	3/8	1.09	0.53	1.06	1.13	2.63	0.16	0.75	0.56	HCRA 250-38
300MCM	1/2	1.19	0.53	1.06	1.13	2.63	0.16	0.81	0.66	HCRA 300
300MCM	3/8	1.19	0.53	1.06	1.13	2.63	0.16	0.81	0.66	HCRA 300-38
300MCM	5/16	1.19	0.53	1.06	1.13	2.63	0.16	0.81	0.66	HCRA 300-516
300MCM	5/8	1.19	0.53	1.06	1.13	2.63	0.16	0.81	0.66	HCRA 300-58
350MCM	1/2	1.28	0.53	1.13	1.13	2.69	0.19	0.88	0.69	HCRA 350
400MCM	5/8	1.38	0.69	1.88	1.5	3.31	0.19	0.94	0.75	HCRA 400
400MCM	1/2	1.38	0.69	1.19	1.5	3.31	0.19	0.94	0.75	HCRA 400-12
500MCM	5/8	1.53	0.69	1.38	1.5	3.5	0.25	1.06	0.83	HCRA 500
500MCM	1/2	1.53	0.56	1.38	1.5	3.5	0.25	1.06	0.83	HCRA 500-12
600MCM	5/8	1.69	0.69	1.5	1.5	3.63	0.25	1.19	0.92	HCRA 600
600MCM	1/2	1.69	0.69	1.5	1.5	3.63	0.25	1.19	0.92	HCRA 600-12
*700MCM	5/8	1.78	0.66	1.38	1.75	3.97	0.27	1.25	0.98	*HCRA 700
*750MCM	5/8	1.91	0.66	1.63	1.94	4.34	0.27	1.31	1.03	*HCRA 750
*1000MCM	5/8	2.19	0.66	1.88	2.13	4.88	0.33	1.5	1.17	*HCRA 1000
